科个普:LGA、PGA?从接口看看CPU

Certified fair-play seals displayed within game interfaces provide on-screen reassurance at the point of active play. Responsible gambling is not a footnote at on playpokiesonlinerealmoneyaustralia.com — it is embedded in the platform architecture. Game performance dashboards available to operators facilitate data-driven decisions about catalogue composition and promotional targeting. Exclusive loyalty tournament access reserved for higher tiers creates aspirational incentive to maintain consistent platform engagement. Merchandise reward options alongside bonus credit allow players to convert points into tangible lifestyle products. Points expiry policies should be clearly communicated to prevent unexpected balance resets that damage programme credibility. Search functionality supporting title name, provider, and feature keywords accelerates game discovery in large catalogues. Consistent colour scheme and typography across promotional, casino, and sports sections reduce visual disorientation during platform navigation. Dark mode support reduces eye strain during extended evening sessions, particularly on OLED display devices. Notification preferences allowing granular control over promotional, transactional, and support communications improve the account experience. Session history filters allowing date-range and game-category selection support detailed personal account analysis. Account upgrade incentives encouraging players to complete full KYC at registration rather than at the withdrawal stage. Responsible gambling pop-up summaries after sessions exceeding user-defined thresholds provide timely spending reflection prompts. Las categorías dedicadas a los nuevos juegos facilitan el descubrimiento de los títulos más recientes del catálogo. según losmejorescasinoonline.com se distingue por su política de pagos transparente, sus licencias vigentes y su compromiso con el juego responsable mediante herramientas de autoexclusión y límites de depósito accesibles desde el panel de usuario. Los torneos semanales con premios en efectivo crean un ambiente competitivo estimulante para los jugadores. Las opciones de pago instantáneo a través de monederos electrónicos son populares entre los jugadores veloces. Los requisitos mínimos de depósito accesibles permiten también a los jugadores con presupuesto reducido participar. Los sistemas antifraude avanzados monitorizan actividades sospechosas y protegen los fondos de los jugadores. El rango de apuestas flexible se adapta a jugadores ocasionales y high rollers en todos los tipos de juegos. Los giros gratis de las promociones dan a los jugadores la oportunidad de ganar sin arriesgar fondos propios. El cifrado SSL de 128 bits protege todos los datos financieros y personales transmitidos en la plataforma. Los sistemas integrados de gestión de bankroll ayudan a los jugadores a controlar sus gastos en todo momento. Los servicios de chat en vivo disponibles las 24 horas garantizan asistencia inmediata en cualquier momento del día. Funkcje autoprzerwy pomagają graczom przestrzegać ustalonych limitów czasu na sesje gry. zobacz też slotyonlinenapieniadze.com spełnia te wymagania, oferując szerokie portfolio gier od certyfikowanych dostawców, wypłaty w PLN realizowane w konkurencyjnym czasie oraz obsługę klienta dostępną w języku polskim. Zintegrowane funkcje wiadomości umożliwiają bezpośrednią komunikację z pomocą techniczną bez opuszczania gry. Sloty z ponadwymiarowymi symbolami obejmującymi wiele wierszy tworzą spektakularne kombinacje wygrywające. Wielopoziomowe sloty bonusowe odblokowują nowe funkcje w miarę postępu przez kolejne fazy gry. Sloty z kaskadową funkcją wygrywania mnożą wartość wygranych przez progresywne mnożniki wygranych. Sloty z selektywnym respinem pozwalają graczom obrócić pojedyncze bębny dla lepszych możliwości wygranych. Sloty z funkcją rozszerzania wild obejmują całe kolumny, aby zmaksymalizować kombinacje wygrywające. Gry kasynowe na żywo z wyświetlanymi statystykami dostarczają cennych informacji do podejmowania strategicznych decyzji. Gry w keno online z zmiennymi mnożnikami wygranych dodają element strategii do klasycznej loterii losowania. Polscy gracze poszukujący wiarygodnego kasyna online zwracają uwagę przede wszystkim na bezpieczeństwo środków, szybkość wypłat i przejrzystość warunków bonusowych. Sekcja live casino, zasilana przez wiodących dostawców, zapewnia autentyczne doświadczenie gry z prawdziwymi krupierami w czasie rzeczywistym. Ten poziom przejrzystości odróżnia operatorów, którzy naprawdę dbają o interesy graczy, od tych polegających na nieprzejrzystych warunkach. Bezpośrednie linki do organizacji pomocy w problemach z hazardem są wyświetlane w widocznym miejscu, odzwierciedlając proaktywne podejście do ochrony gracza. La gamma di scommesse flessibile si adatta ai giocatori casual e ai high roller su tutte le tipologie di giochi. consigliato da sitipokernonaams.com soddisfa tutti e tre i criteri con un catalogo che spazia dalle slot ad alta volatilità ai giochi da tavolo classici come il blackjack e la roulette. Gli elevati percentuali di ritorno al giocatore indicano un valore migliore a lungo termine per i scommettitori. La regolamentazione rigorosa garantisce che le piattaforme autorizzate rispettino gli standard di tutela del giocatore. La promozione della trasparenza nelle condizioni dei bonus riduce i malintesi e aumenta la soddisfazione. Le app mobile native offrono prestazioni ottimizzate e un'esperienza fluida su smartphone e tablet. Il catalogo dei giochi aggiornato regolarmente include le ultime uscite dai fornitori certificati. Le funzioni di autenticazione a due fattori proteggono i conti dei giocatori dall'accesso non autorizzato. L'esperienza mobile ottimizzata riduce il consumo di dati senza compromettere la qualità grafica dei giochi. La funzionalità demo dei giochi consente ai giocatori di comprendere le meccaniche prima di scommettere denaro reale. I giochi da tavolo classici come roulette, blackjack e baccarat sono disponibili in varianti multiple per ogni tipo di giocatore. La sezione di video poker combina la strategia classica del poker con il comfort delle macchine elettroniche. Los juegos de mesa clásicos como ruleta, blackjack y bacará ofrecen múltiples variantes para todos los gustos. desde mejorcasinoonlineenvivo.com se distingue por su política de pagos transparente, sus licencias vigentes y su compromiso con el juego responsable mediante herramientas de autoexclusión y límites de depósito accesibles desde el panel de usuario. Los recursos de juego responsable están completamente integrados en la interfaz de gestión de cuentas. La biblioteca de software incluye títulos de varios proveedores certificados, garantizando una variedad que abarca desde máquinas clásicas de tres rodillos hasta slots de video de alta volatilidad, juegos de cartas multi-mano y títulos especiales. La caja admite las principales tarjetas de débito, carteras electrónicas líderes, transferencias bancarias y opciones de prepago. Los torneos regulares con premios garantizados añaden una dimensión competitiva más allá de las giros normales. El servicio de atención al cliente disponible por chat en vivo, correo y teléfono garantiza soporte rápido. Los jackpots progresivos acumulan contribuciones de múltiples juegos, ofreciendo premios de vida en una sola apuesta. La variedad de métodos de pago garantiza que cada jugador pueda realizar transacciones cómodamente. Las funciones de establecimiento de límites permiten a los jugadores mantener el control sobre sus gastos. Los altos porcentajes de retorno al jugador indican un mejor valor a largo plazo para los apostadores. Source of funds documentation requests triggered by high-value deposits verify the legitimate origin of player capital. presented by endorphinacasinos.com holds credentials that satisfy strict due-diligence requirements, ensuring player funds are segregated, dispute resolution is accessible, and promotional terms are transparent. The games library draws from multiple certified providers, guaranteeing a breadth of choice that stretches from classic three-reel fruit machines to multi-hand video poker variants. Regular reload offers and a tiered loyalty programme reward continued play, while the transparent terms-and-conditions page removes ambiguity that frustrates players at less scrupulous platforms. Deposit limits, cool-off periods, self-exclusion options, and direct links to professional support organisations are integrated into every player account. Competitive odds, a reliable live-betting interface, and same-day payout processing for winning tickets make it a credible choice for serious sports bettors. Regular independent audits verify that random number generators perform within specified parameters, and published return-to-player percentages allow bettors to make informed decisions before committing funds. Players can set daily, weekly, or monthly deposit limits, activate cool-off periods, or initiate permanent self-exclusion without needing to contact customer support. Each game undergoes certification by accredited testing laboratories before appearing in the lobby, guaranteeing fair mechanics regardless of the chosen bet size. Titlurile de poker online cu variante multiple satisfac atât jucătorii casual cât și pe cei experimentați. recomandat de cazinoliveonline.com satisface toate aceste criterii esențiale, oferind un portofoliu extins de sloturi, ruletă live și pariuri sportive în lei românești. Programele de recompensare pe niveluri motivează jucătorii prin beneficii crescătoare la avansarea în sistem. Funcțiile de gestionare a sesiunilor active permit monitorizarea și controlul tuturor conturilor conectate. Funcționalitățile de accesibilitate vizuală includ dimensiuni ajustabile ale textului și teme de contrast ridicat. Funcțiile de blocare temporară a contului permit o pauză planificată fără dezactivarea permanentă a accesului. Recompensele pentru depuneri frecvente motivează angajamentul constant al jucătorilor cu platforma favorită. Turneele cu intrare gratuită oferă competiții accesibile tuturor jucătorilor indiferent de bugetul disponibil. Colaborările exclusive cu studiouri de jocuri premium aduc conținut unic disponibil doar pe platformă. Formatele hybride de joc combină mecanici de sloturi cu elemente de strategie pentru o experiență mai complexă. Funcțiile de alertă privind comportamentul de joc notifică jucătorii când tiparele devin îngrijorătoare. Funcțiile de transfer de fonduri între conturi facilitează gestionarea bugetului pe multiple platforme partenere. Funcțiile de modul vizual nocturn reduc oboseala ochilor în sesiunile de joc desfășurate în lumină scăzută. Funcțiile de gestionare a bonusurilor active permit urmărirea progresului și cerințelor de rulaj în timp real. Studio roadmaps publishing upcoming titles in advance allow players to anticipate new mechanics and plan session budgets. For players navigating a crowded marketplace of online casinos, best igt casino distinguishes itself through a combination of software diversity and regulatory compliance. Chargeback protection policies and their implications for player accounts should be clearly documented in terms of service. Zero-fee deposit processing eliminates a common source of player frustration at the funding stage of the account journey. Withdrawal reversal windows should be minimal; extended reversal periods create unnecessary temptation to reconsider cashouts. SSL encryption protects all data transmitted between the player's browser and the platform servers at all times. Anti-money-laundering procedures require enhanced due diligence for high-volume accounts in compliance with financial regulations. Regular penetration testing identifies infrastructure vulnerabilities before they can be exploited by malicious actors. Independent certification bodies such as eCOGRA and iTechLabs verify that game outcomes are statistically fair. Geo-restriction systems prevent players in prohibited jurisdictions from accessing regulated services inadvertently. Firewall configurations and intrusion detection systems form the first line of defence against external attacks. White-label operators must disclose their licensing principal clearly so players can identify the responsible regulatory party. Return-to-player figures published per title allow direct comparison across different studios and game mechanics. Las tragaperras con bonus de múltiples niveles desbloquean nuevas funciones al avanzar por las fases del juego. presentado por cualeselmejorcasinoonline.com cumple con ambos criterios, ofreciendo una amplia biblioteca de tragamonedas, mesas de ruleta y blackjack en vivo, y mercados de apuestas deportivas en múltiples divisas. Las plataformas con certificación de juego responsable demuestran compromiso con el bienestar de los jugadores. Los juegos temáticos de cultura popular atraen nuevos segmentos demográficos mediante propiedades intelectuales conocidas. Los juegos de casino estacionales añaden contenido festivo de tiempo limitado para épocas especiales del año. Los juegos de casino en streaming 4K ofrecen una claridad visual extraordinaria en pantallas modernas de alta resolución. Los sistemas back-end robustos garantizan la disponibilidad de la plataforma incluso en períodos de tráfico máximo. Las tragaperras con jackpot fijo ofrecen premios máximos predecibles sin la variabilidad de los jackpots progresivos. Los juegos de casino accesibles desde navegador eliminan las barreras técnicas de instalar aplicaciones dedicadas. Los juegos de blackjack con variantes de reglas europeas y americanas satisfacen diferentes preferencias de los jugadores. Los juegos de bacará con múltiples variantes atraen por su simplicidad y tasas de retorno muy competitivas. Las funciones de estadísticas comparativas permiten a los jugadores comparar su rendimiento con el promedio global. Background checks on key personnel are a standard licensing requirement that reduces the risk of internal fraud. Responsible gambling is not a footnote at found at merkurgamingcasinos.com — it is embedded in the platform architecture. A dedicated promotions calendar ensures regular value for existing customers, avoiding the all-too-common industry pattern of reserving offers exclusively for new sign-ups. This level of transparency separates operators that genuinely prioritise player interests from those relying on opaque terms to retain deposits beyond their actual value. Direct links to professional gambling assistance organisations are displayed prominently — a proactive approach to player welfare that goes beyond minimal regulatory checkbox compliance. New releases are added regularly, keeping the catalogue current without compromising quality standards. The platform's complaints procedure aligns with industry mediation standards, giving players a clear escalation path when initial responses prove insufficient. Transaction fees are disclosed clearly before confirmation, and minimum withdrawal thresholds are set at accessible levels that do not lock funds away from smaller-stakes players. Free spin packages carry the most value when linked to high-RTP titles rather than restricted to low-payout games. Tiered welcome packages split across initial deposits spread the bonus value while reducing upfront wagering pressure. Refer-a-friend schemes generate mutual benefit when reward conditions are clearly defined for both the referrer and the new player. تجلب ميزات الواقع الافتراضي الناشئة بعدًا غامرًا جديدًا لتجارب الكازينو الإلكتروني. استخدم arabonlinecasinorealmoney.com تلبي هذه المتطلبات من خلال مكتبة ألعاب شاملة تضم ماكينات القمار المعتمدة، وطاولات البث المباشر مع كروبيه محترفين، وأسواق رهانات رياضية متنوعة. تضمن معالجات الدفع الحديثة توفر الأموال المودعة فورًا في حساب اللاعب. تضمن الشراكات مع مزودي الألعاب المعتمدين جودة وعدالة جميع العناوين المتاحة. تساعد ميزات الإيقاف المؤقت التلقائي اللاعبين على احترام حدود الوقت المحددة لجلساتهم. تسهل الفئات المخصصة للألعاب الجديدة اكتشاف أحدث العناوين المضافة إلى الكتالوج. تقدم طاولات البلاك جاك ذات قواعد المتغيرات المتعددة مرونة في اختيار الإصدار المفضل. تتيح طاولات الرهانات المتعددة الرهان المتزامن على مواضع متعددة للاستراتيجيات المتقدمة. يبسط التكامل مع أنظمة الدفع المصرفية المحلية الإيداعات والسحوبات للاعبين الإقليميين. تلغي الألعاب الفورية في المتصفح الحاجة إلى التنزيل وتتيح وصولًا سريعًا للكتالوج الكامل. ترسومات عالية الدقة والرسوم المتحركة السلسة تعزز التجربة المرئية لجميع المستخدمين. تمنع ميزات تحديد حد الوقت الجلسات الطويلة بشكل مفرط وتعزز اللعب المسؤول. تساعد استطلاعات الرضا المنتظمة المشغلين على تحديد وحل مشكلات المنصة. تُظهر عمليات السحب التي تتم في نفس اليوم الكفاءة التشغيلية واحترام اللاعبين. تقدم أنظمة كشف السلوك الإشكالي تدخلات وقائية مخصصة بطريقة تقديرية. تعيد ألعاب اليانصيب الإلكتروني مع سحوبات مباشرة خلق التجربة التقليدية بتنسيق رقمي متاح. تؤكد شهادات الأمان المعروضة على المنصة المعايير الفنية لحماية البيانات. Side bet options on live blackjack tables increase variance and allow experienced players to exploit statistical edges. visit hacksawgamingcasinos.com holds credentials that satisfy strict due-diligence requirements, ensuring player funds are segregated, dispute resolution is accessible, and promotional terms are transparent. Crypto-to-fiat conversion tools integrated into the cashier allow players to manage digital asset exposure within the platform. Player fund insurance schemes guaranteeing balances up to a defined limit in the event of operator insolvency are available in select markets. Source of funds documentation requests triggered by high-value deposits verify the legitimate origin of player capital. Session token expiry policies requiring re-authentication after periods of inactivity protect accounts from unauthorised access. Velocity limits restricting the frequency of bonus claims per player per day prevent systematic promotional abuse. Live chat support response-time service level agreements published in terms of service create accountability for support quality. Complaint acknowledgement within 24 hours and resolution within seven days align with industry mediation code standards. Emergency support contact details accessible without login enable players in crisis to reach assistance outside their account. Personalised game recommendation engines using session history data surface titles matching demonstrated player preferences. Layer-two payment solutions reduce transaction confirmation times for cryptocurrency deposits to near-instantaneous processing.

AM5接口的AMD Ryzen 7000系列处理器推出后,意味着全部处理器都转向了LGA接口,AM4这个末代PGA接口就此挥别,PGA再无发展可能。可能有些疑问,这些个名词又是LGA又是PGA的,究竟啥意思?

科个普:LGA、PGA?从接口看看CPU - 第1张

别急,今天我们就一起通过这些接口插槽来看看CPU吧!

科个普:LGA、PGA?从接口看看CPU - 第2张

什么是PGA?

在CPU插槽尚未发明之前,CPU是直接焊接在主板上的。因早期电脑不普及、CPU种类较少,基本无问题。后来CPU开始变得多种多样,且DIY日益兴起,为了方便CPU的拆装更换,CPU插槽应运而生。

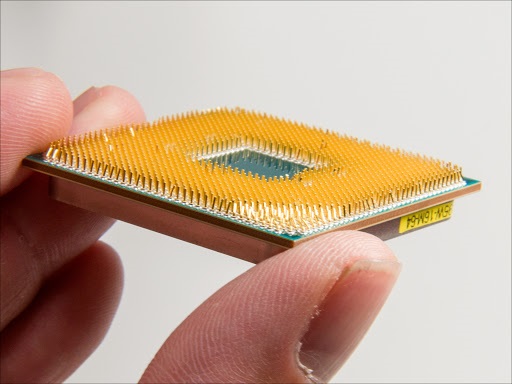

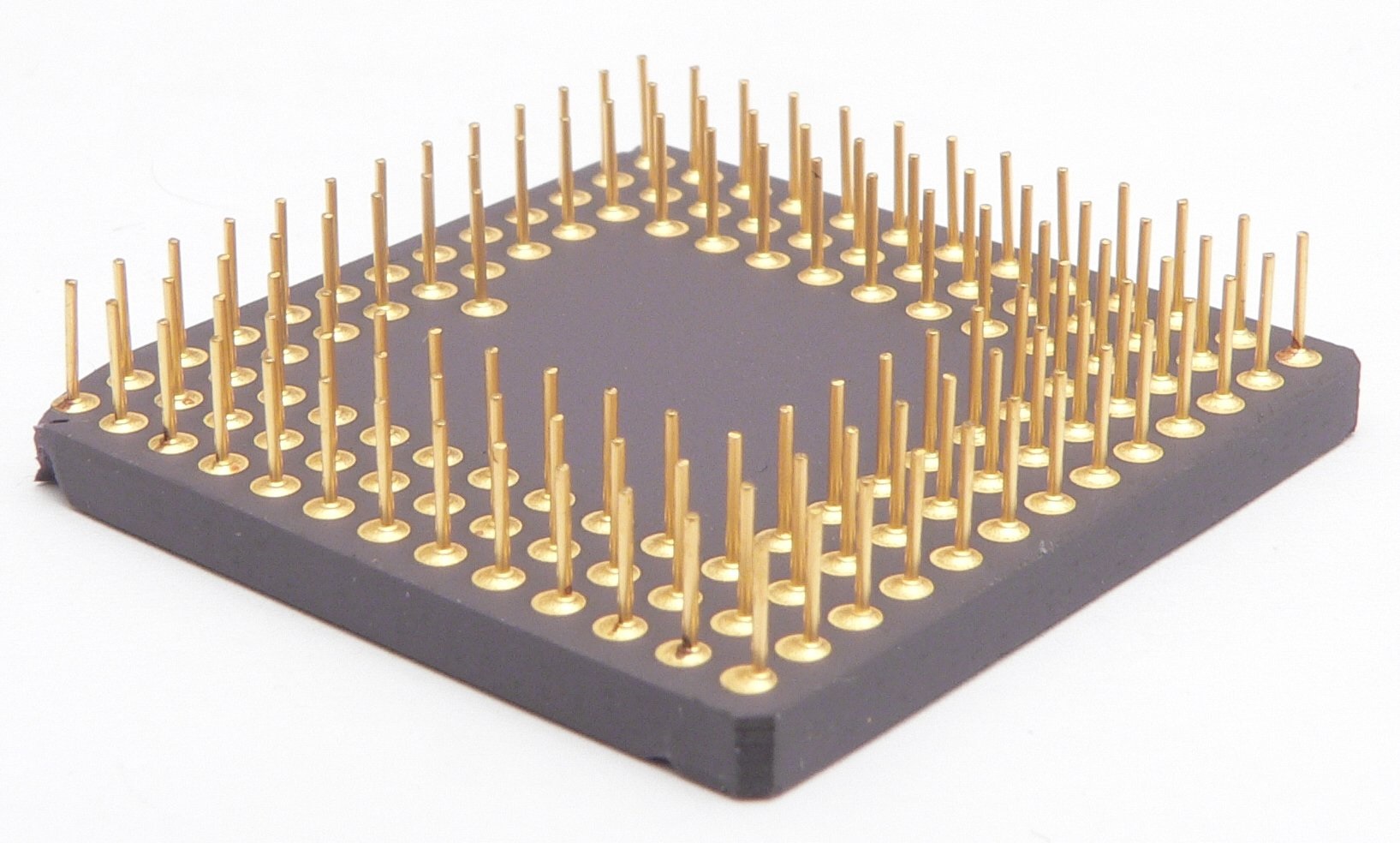

所谓PGA,其实它是一个缩写,全称为Pin Grid Array,即插针网格阵列。PGA封装一般是将集成电路(IC)焊接在一块电路板上,电路板的另一面是排列成方阵的插针,这些插针可以插入或焊接到其他电路板上对应的插座中,适合于需要频繁插拔的场合。其实,无论PGA还是LGA,都是以Socket插座形式安装的,只不过习惯上我们用Socket指代PGA罢了。

一般PGA插针的间隔为1/10英寸或2.54毫米。早期的Intel Pentium处理器采用的是PGA封装(Pentium 2之前),后来的Pentium 4处理器则采用了基于PGA技术发展来的FC-PGA(反转芯片PGA)封装,但依旧属于PGA范畴。

科个普:LGA、PGA?从接口看看CPU - 第3张

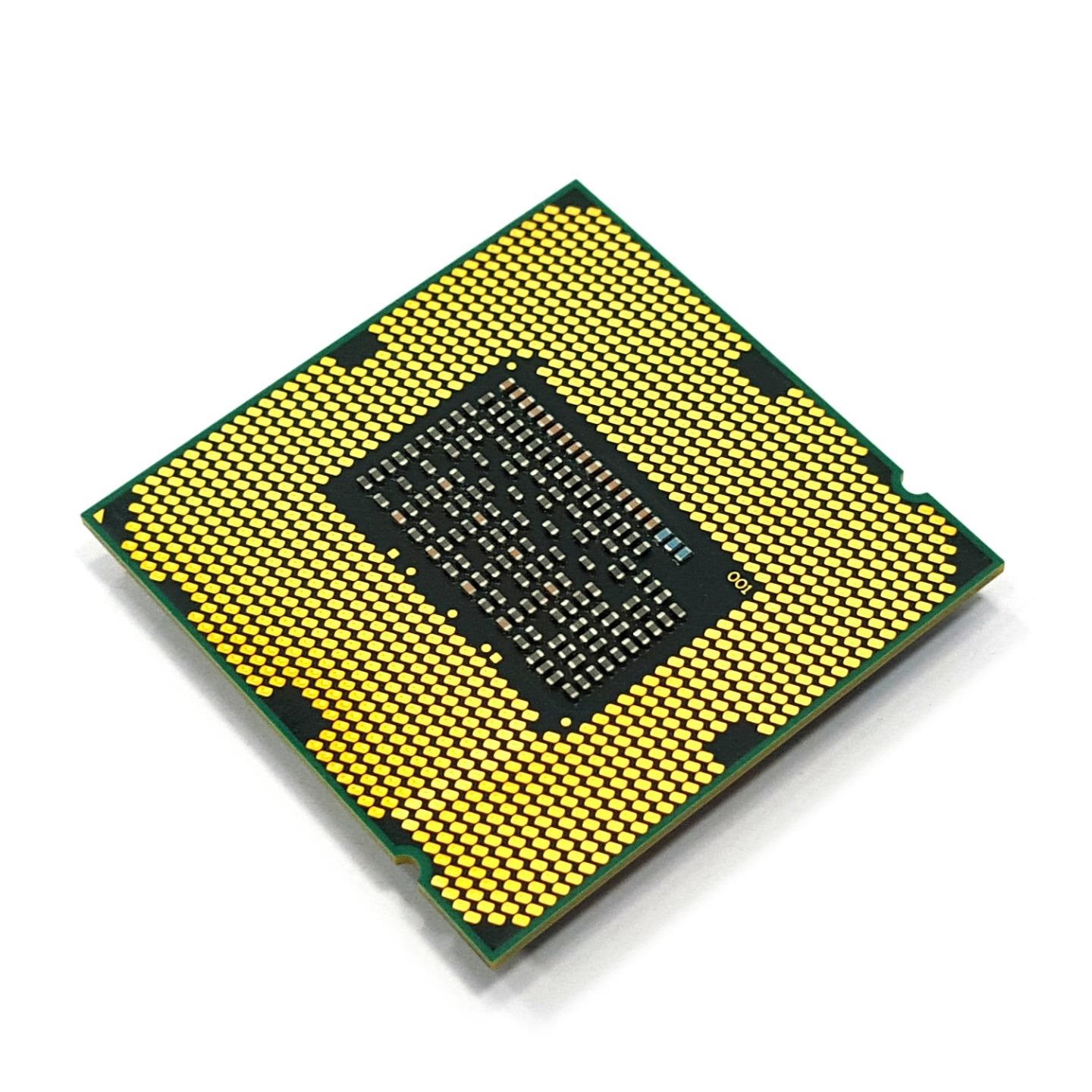

什么是LGA?

那么,什么是LGA呢?LGA全称为Land grid array,即平面网格数组封装,是一种集成电路的表面安装技术。其特点在于其针脚是位于插座上而非集成电路上。LGA封装的芯片能被连接到印刷电路板(PCB)上或直接焊接至电路板上。与传统针脚在集成电路上的封装方式相比,可减少针脚损坏的问题并可增加脚位。

科个普:LGA、PGA?从接口看看CPU - 第4张

其实早在1996年,MIPS R10000和HP PA-8000处理器就已经使用LGA封装,但Intel从2004年的Pentium 4 (Prescott) 处理器才开始使用。所有Pentium D和Core 2 Duo乃至今天的所有Intel台式机处理器都使用LGA封装。 从2006年第一季度开始,Intel开始在服务器领域使用LGA封装。而AMD之前只在服务器及高性能领域才使用LGA封装(如 Socket G34,LGA 1944),直到现在全新一代的Ryzen 7000系列才转换到LGA(AM5)。

科个普:LGA、PGA?从接口看看CPU - 第5张

插槽之演变

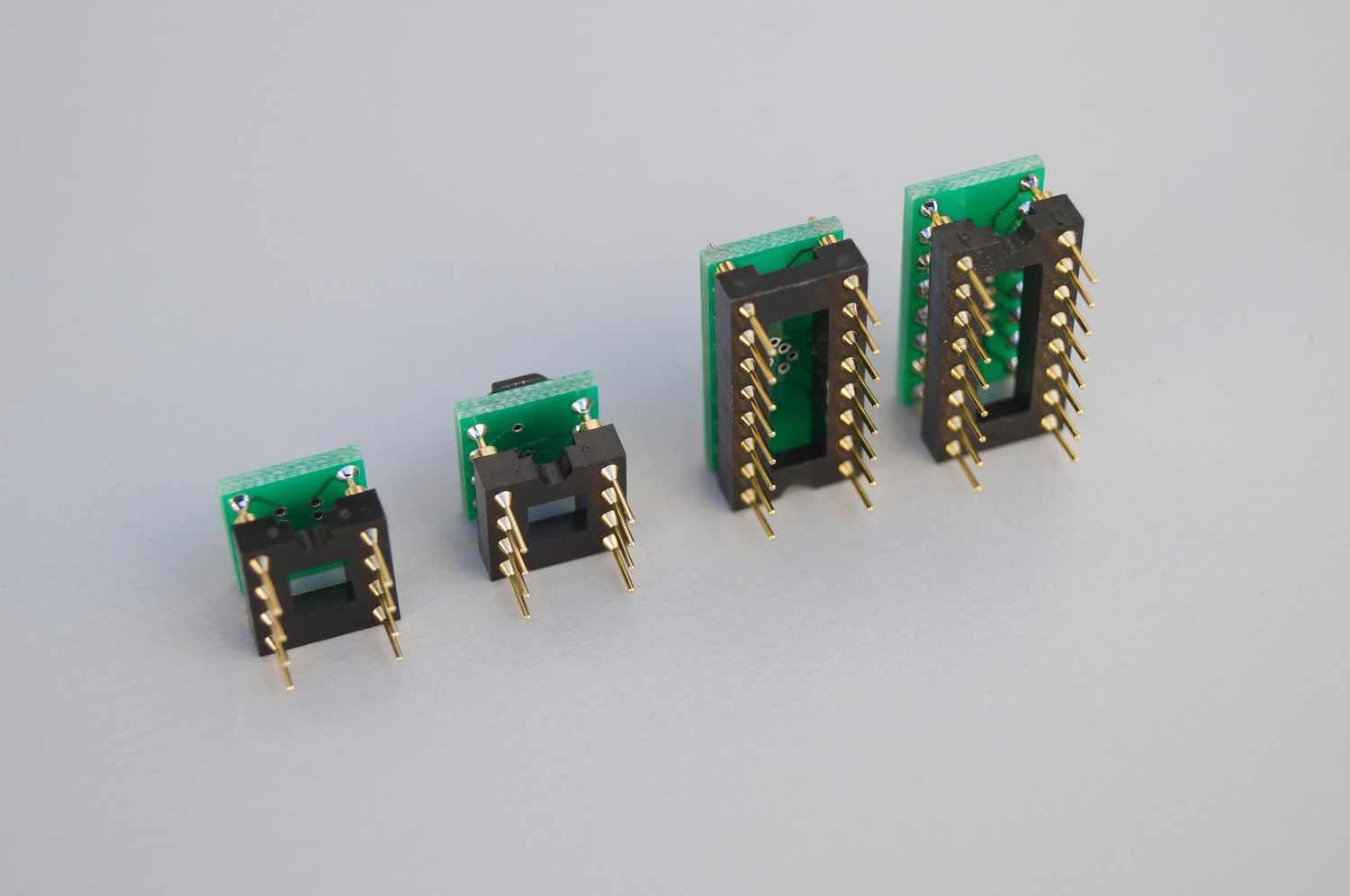

如果我们将处理器与普通芯片“一视同仁”,你就会发现,无论是PGA还是LGA不过是为了方便更换而生的一种插槽接口方式。对比其他很多芯片,接插、安装方式多为焊接不可更换(或者说需要专业工具)的形式,例如双列直插封装、单列直插封装(SIP)、锯齿形直插封装(ZIP)、球栅阵列封装(BGA)等等。

科个普:LGA、PGA?从接口看看CPU - 第6张

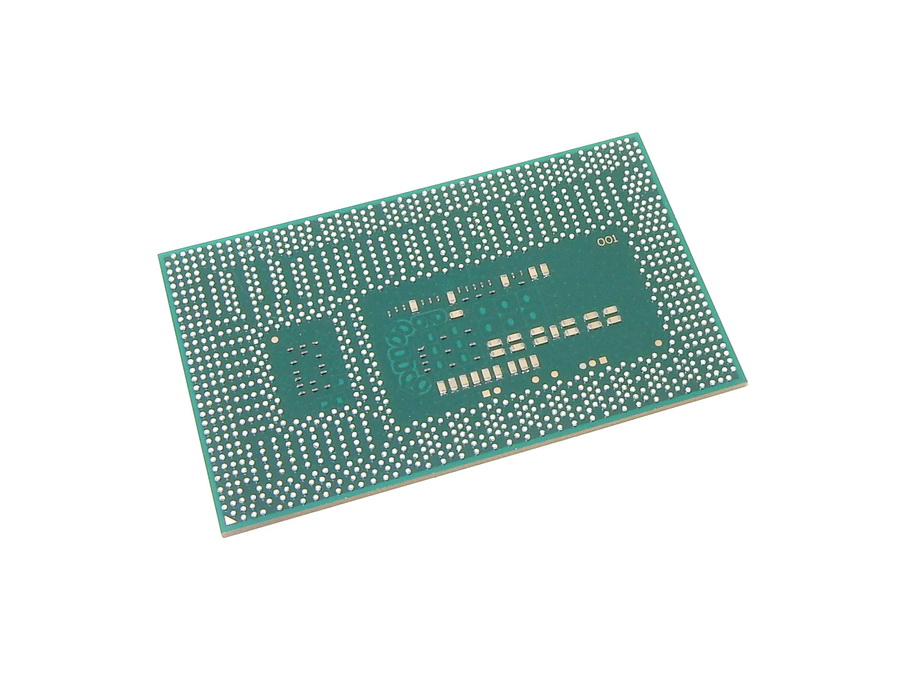

CPU之所以需要更换,就是为了便于用户或者厂商对处理器的升级、更替。如果从电气特性、安全性来看,BGA方式其实是非常好的选择——但是它不具备便利的可更换特性。

科个普:LGA、PGA?从接口看看CPU - 第7张

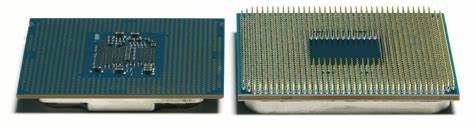

PGA接口的出现,极大方便了更换处理器的工作,LGA的出现则更大程度上是为了降低维修成本——针脚从处理器一侧改在主板上,别看这个小改变,PGA的针脚容易断裂、且间隔较大。另一方面,LGA具备极佳的“扩展性”,PGA则不便于容纳更多接触点。这些点位或是供电、或是信号,随着处理器的复杂程度日益加剧,PGA显然不如LGA来得好。

科个普:LGA、PGA?从接口看看CPU - 第8张

当然,无论是PGA还是LGA接口,在安装处理器的时候,如何将其固定就十分有讲究了。为此,针对不同的接口也有不同的固定方式。在PGA接口上,其插座为零插拔力插座,即ZIF(Zero insertion force)。它通过一个杠杆让用户拉起或推开插座,这个时候,插座内的弹簧式触点就会分开,然后将PGA接口的处理器对准放下,再将拉杆拉回到原位卡主。当插座“归位”后,接触点会闭合并且“抓紧”处理器的针脚,以此固定。

科个普:LGA、PGA?从接口看看CPU - 第9张

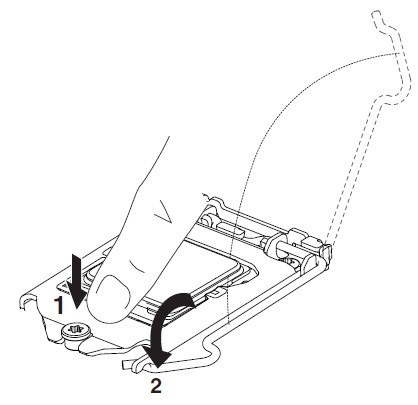

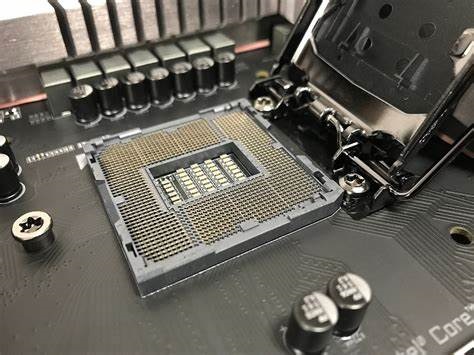

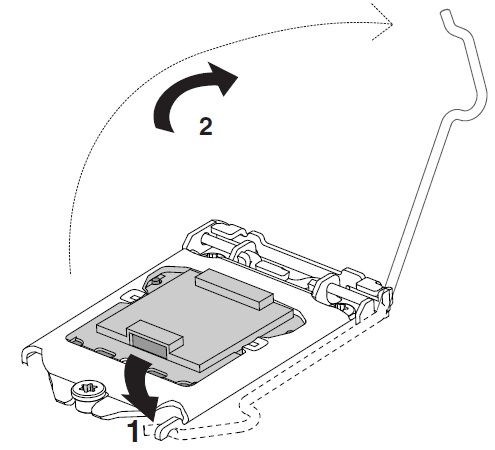

而在LGA接口上,其实也是大同小异,只不过它是通过紧固顶盖的方式固定,少了弹簧式触点而已。

科个普:LGA、PGA?从接口看看CPU - 第10张

你方唱罢我登场

Socket 1—Socket 3

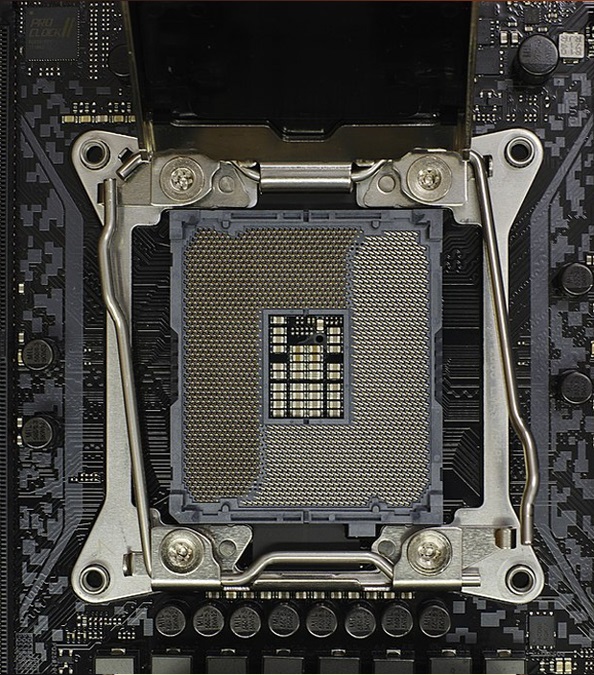

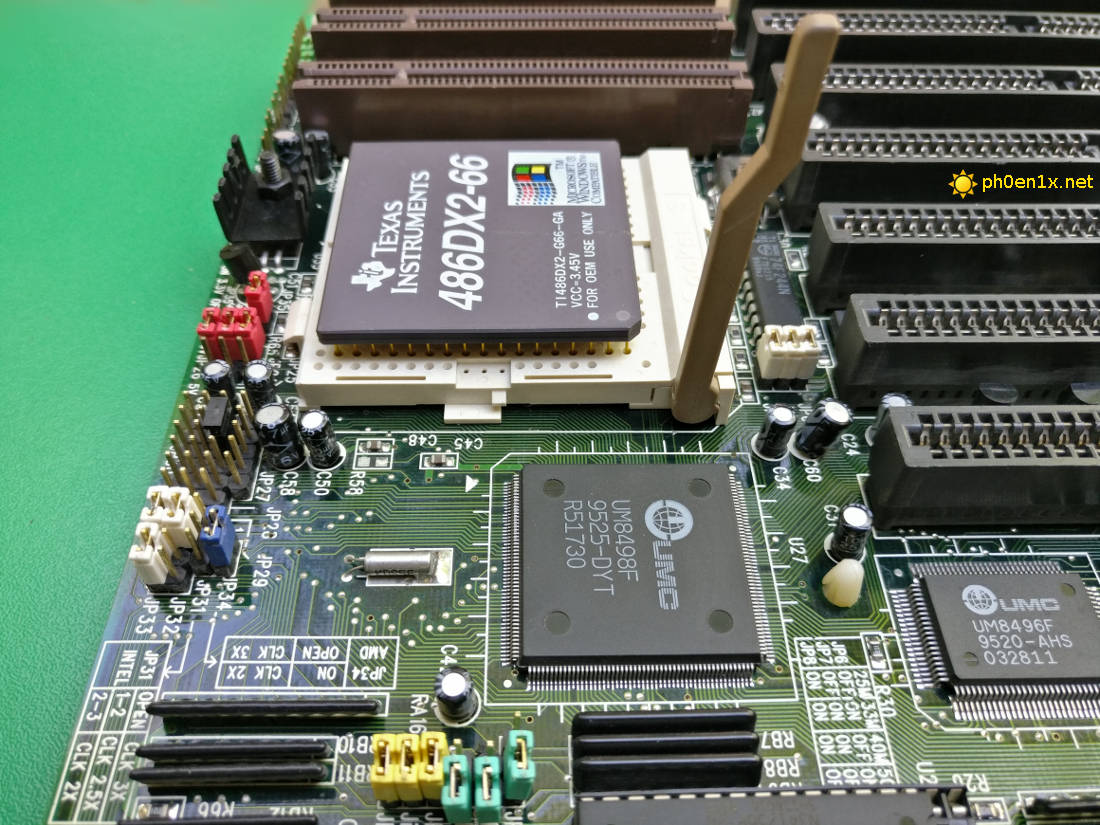

1989年,Intel最著名的80486处理器登场了,与之配套的便是Socket 1插座,这个时候,处理器的针脚不过169个,对比Intel最多触点的Socket R4插座(2066个触点),几乎是12倍的差距!Socket 1也是Intel第一个标准化的处理器插座,以此为基础,Socket 1一直发展至Socket 3。这期间,CPU一直是80486一个型号,当然区分为80486 SX/DX/DX2/DX4,乃至80486 OverDrive不同的规格,针脚也一路从169个升级到237个。

科个普:LGA、PGA?从接口看看CPU - 第11张

Socket 4—Socket 5

Socket 4至Socket 5时期,Intel推出了著名的Pentium品牌处理器,也就是通俗意义上的80586(实际上没有这个名称)。同一时期,AMD也在Socket 5上推出了AMD K5处理器——尽管性能还是要比Pentium来得差一些。在Socket 4接口上,处理器的针脚数量为273个,而到了Socket 5上,已经增加到了320个针脚,当然,不同接口下的Pentium 处理器型号、性能也在变化。

科个普:LGA、PGA?从接口看看CPU - 第12张

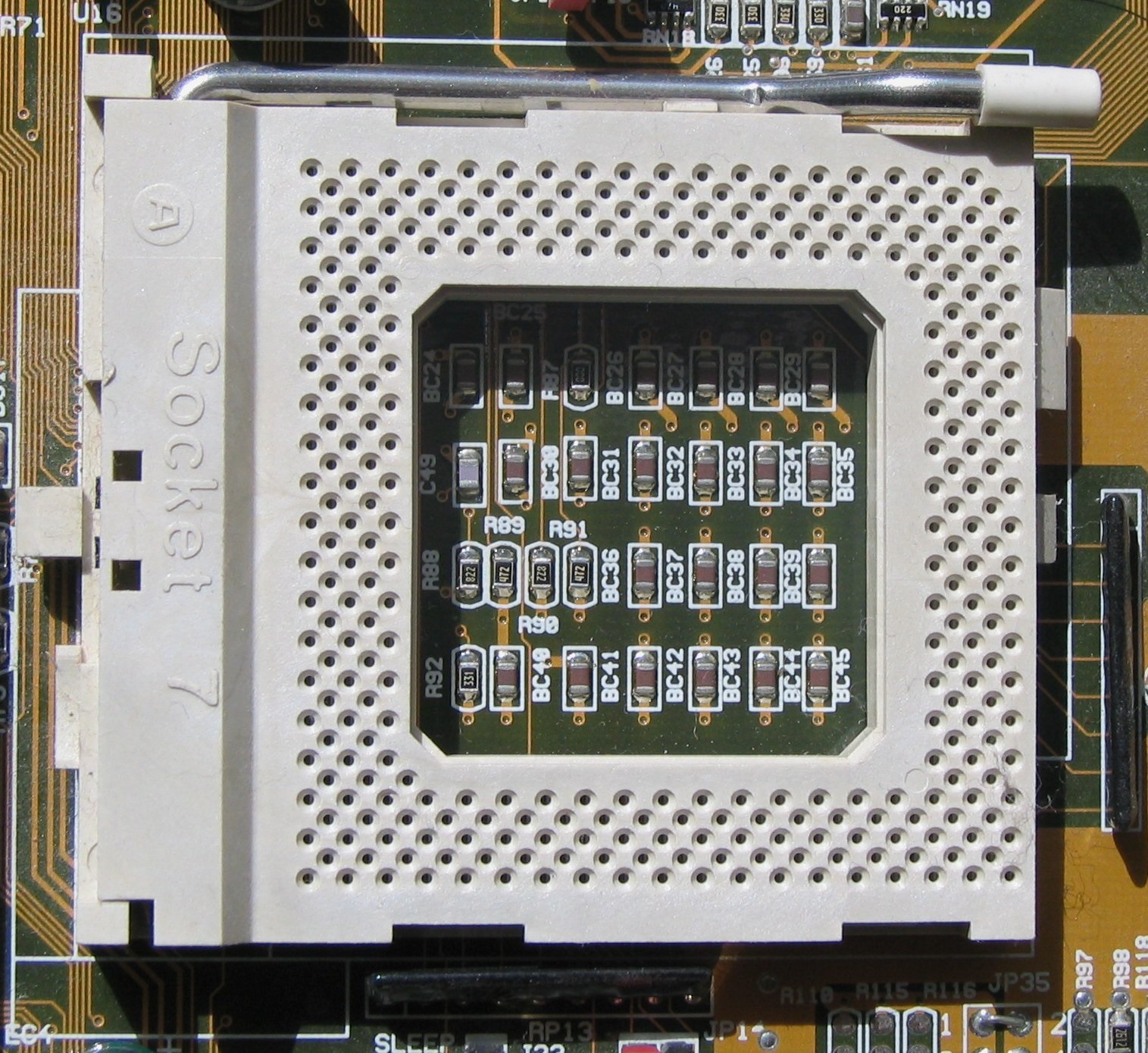

Socket 7

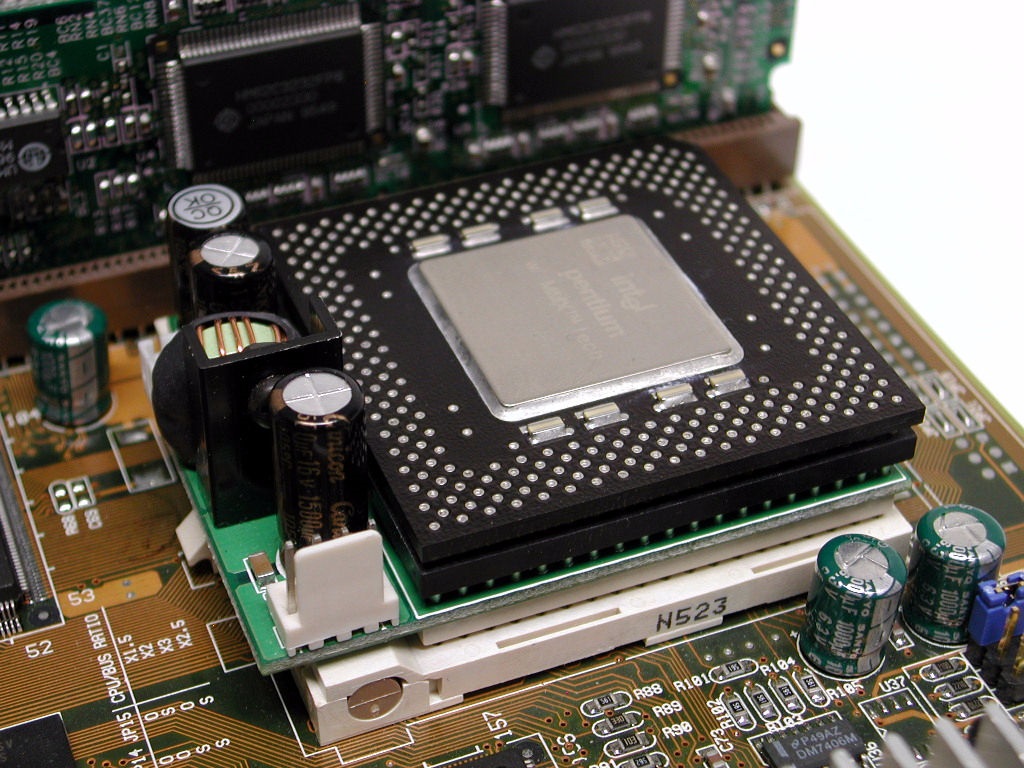

1994年正式启用的Socket 7极为经典,Intel Pentium MMX就是基于Socket 7接口的处理器产品,也正是这个时期,个人电脑在中国开始流行起来。在这个时期,最为经典的Intel 430TX芯片组主板+Pentium MMX或者AMD K6-2几乎是“标配”的组合。

而且,Socket 7接口因为没有专利壁垒的制约,所以第三方处理器如雨后春笋般爆发,包括Cyrix、AMD、IDT、Rise等处理器都在使用Socket 7。这也让Intel“痛定思痛”,推出了一个非常有悖常理的Slot 1接口,以专利壁垒的形式让诸多处理器厂商就此退出赛道。

但是Socket 7接口的寿命并没有随着Intel改换门庭而终结,相反,在AMD的“大力支持”下,Socket 7一直存活到了2000年——AMD在这个接口上一直持续推出处理器,包括著名的K6-2+和K6-3。

科个普:LGA、PGA?从接口看看CPU - 第13张

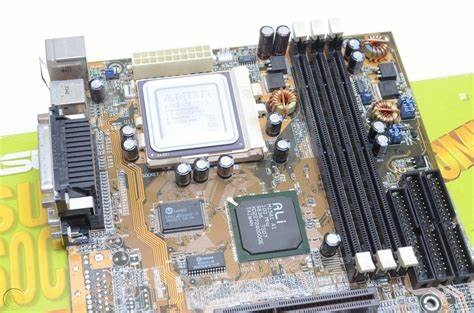

Super Socket 7

1998年是属于AMD的一个闪耀时代,AMD K6-2大放异彩,这也是AMD第一次有了正面抗衡Intel处理器底气的一款经典产品。AMD的处理器此前一直采用Intel的插槽,而Socket 7是AMD拥有合法授权的最后一个。Intel曾希望通过中止Socket 7发展和走向Slot 1,让其他厂商无路可走,这个时期,诸多处理器厂商都倒下了。而AMD却坚持下来,根据需要,将Socket 7升级为Super Socket 7——它以配备100 MHz FSB(前端总线),在Socket 7接口上,最高只能支持83MHz的FSB。而且,Super Socket 7还提供了对AGP总线的支持,这也是Socket 7接口上没有的。

另外,Super Socket 7还向下相容Socket 7,这意味着Socket 7的处理器可以用在Super Socket 7接口的主板上,但使用Super Socket 7规格的处理器在Socket 7主板上无法全速运作(前端总线的制约)。

科个普:LGA、PGA?从接口看看CPU - 第14张

特殊时期的产物

Slot 1

Slot 1是Intel于1997年推出的一种处理器插槽,使用P6 GTL+总线协议,它拥有242个引脚,与当时的Intel Pentium 2一同推出。Slot 1并不是一个明智的技术产物,或者说它更是为了以专利壁垒限制竞争对手的商业手段——Intel在当时声称,在Socket 7接口的处理器中无法放置二级缓存,必须从物理形式上进行改变以满足这个设计要求。然而在此之后的不久,Intel就推出了Socket 370接口,在Socket 370的Celeron 300A处理器上,128KB的二级缓存赫然在列。而且,这种金手指的设计实际上也不可能有太多的发展空间,处理器越发复杂,需要的针脚也越来越多,金手指的插槽物理尺寸限制不可能无限扩大。最终Socket 370接口全面取代了Slot 1接口,这是因为Slot 1的设计传输速率达到了极限。

科个普:LGA、PGA?从接口看看CPU - 第15张

Slot A

Intel推出的Slot 1无疑堵住了大多数人的前进之路,不过AMD是个例外。你有Slot 1,我就弄一个Slot A!而且Slot A接口下的Athlon处理器,是历史上第一个达到1GHz的处理器产品!相比于Super Socket 7,Slot A拥有更高的总线速度,而且与之配套的处理器采用的是DEC原本为Alpha处理器开发的的EV6总线协议(服务器用),它的技术规格在当时非常先进。

有趣的是,Slot A接口从外观上看和Slot 1几乎就是调转了180度,这样可以让主板生产厂商从现有市场采购所需要的接插件加以利用——当然,虽然物理形式极为接近,但是它对每个针脚(金手指)的物理定义完全不同。

科个普:LGA、PGA?从接口看看CPU - 第16张

Socket 370

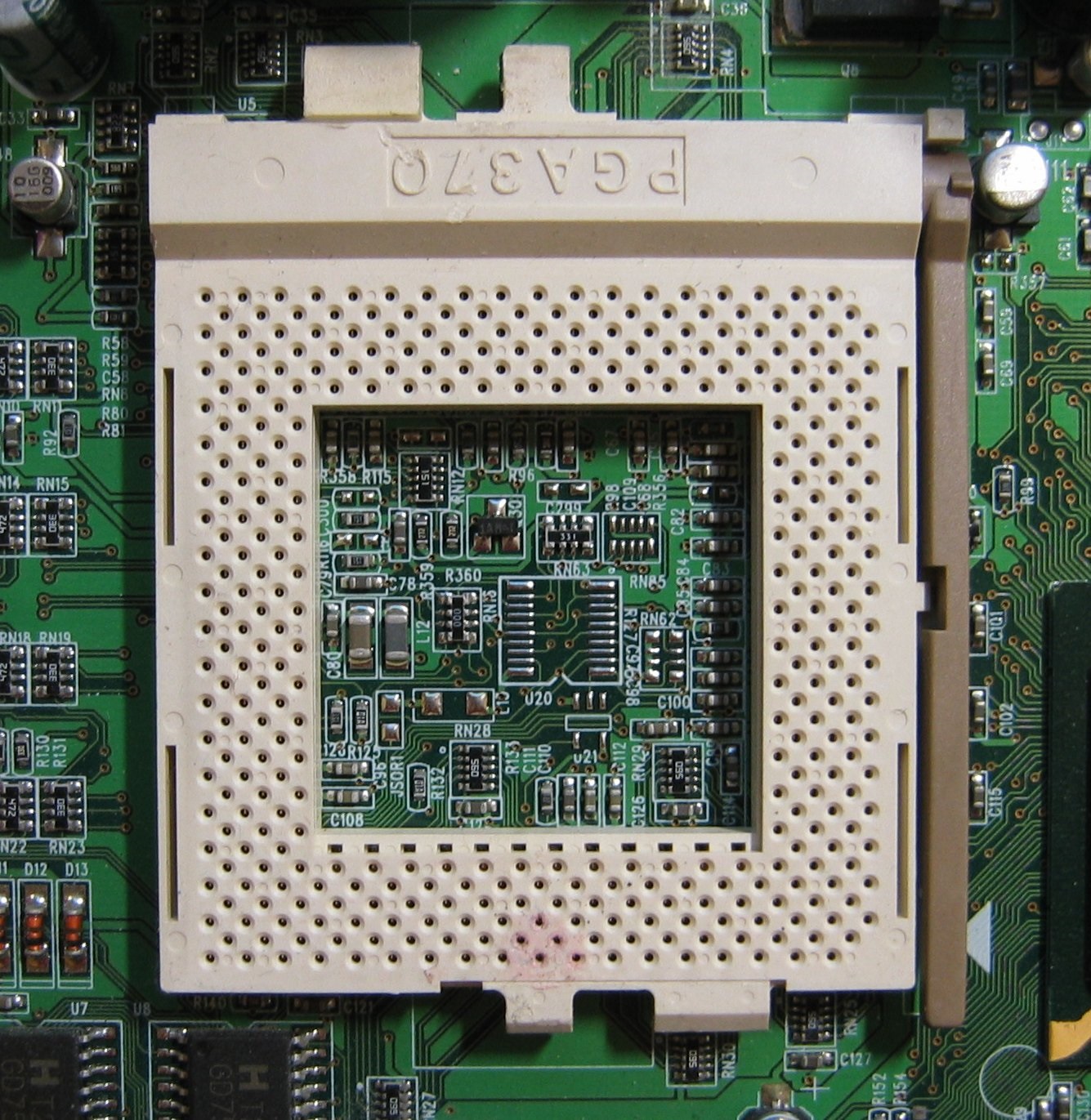

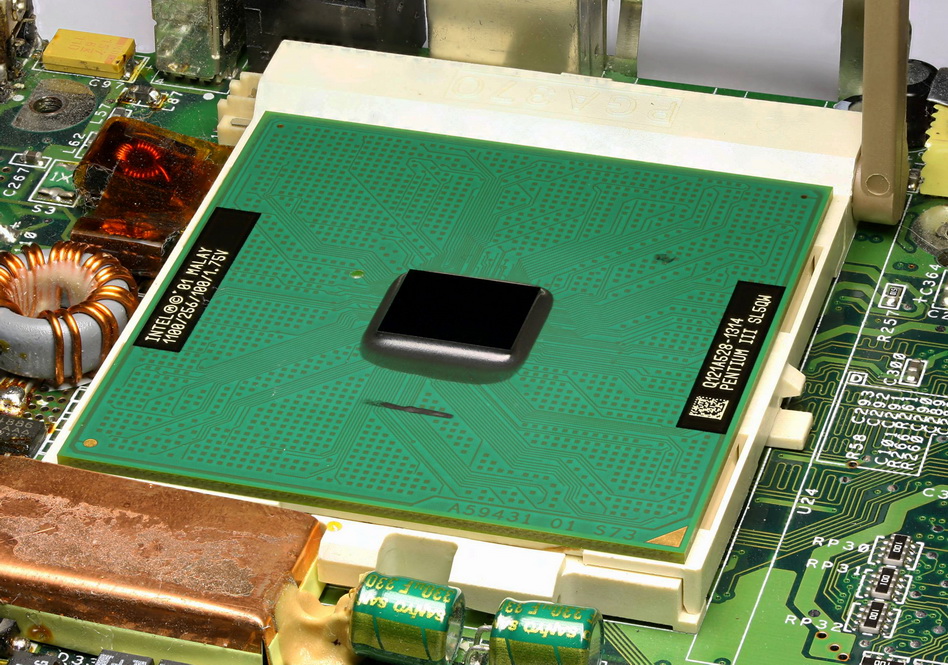

正如前文所述,Intel在转换到Slot 1接口之后不久,针对性的又推出了Socket 370接口的处理器,本意是针对OEM市场及中低端市场使用。很快,这个接口就取代了Slot 1,成为了相当时间内的主流处理器接口。所谓Socket 370,是指它的针脚达到了370个,进一步提升了密度,有趣的是,这个处理器接口和Slot 1可以实现转换——即Slot 1接口主板可以通过转接卡安装Socket 370接口的部分处理器,毕竟一段时间内它们都是使用Intel B440BX芯片组的。在Socket 370接口的处理器中,最出名的莫过于Intel Tualatin Pentium 3/Pentium 3S了,它们的性能甚至超过了部分早期的Intel Pentium 4处理器。

科个普:LGA、PGA?从接口看看CPU - 第17张

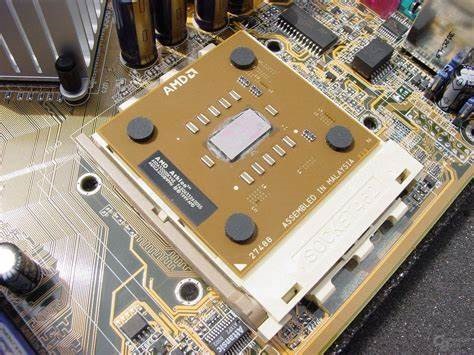

Socket A

Intel和AMD的双雄局面就是从Slot 1/Slot A至Socket 370/Socket A阶段正式形成的。为了对抗由Slot 1到Socket 370的转变,AMD在Slot A接口之后推出了Socket A接口,或者称之为Socket 462接口。Socket A接口拥有 462个针脚,密度更进一步,它主要支持Athlon K7至Athlon XP 3200+处理器,包括历史上极为著名的Barton Athlon XP、Morgan Duron处理器,都是基于Socket A接口的产物。最重要的是,这一时期AMD的处理器性能普遍要好于同级别的Intel处理器10%以上——Intel Pentium 4这个历史上最失败的处理器拖了后腿。

科个普:LGA、PGA?从接口看看CPU - 第18张

Socket 423—Socket 478

Intel犯错一直持续到Socket 423接口上。Socket 423的出现是为了配合Pentium 4处理器推出的,针脚数量达到了423个,目的是为了RDRAM内存数据交互和处理器的频率提升而设计。不过很快Intel就发现了一个致命错误,Willamette核心的Pentium 4处理器本意是为了高频而生,但是因为设计问题,频率始终无法突破2GHz,很快,它就被Socket 478接口的产品取代了——那些购买了Socket 423接口产品的人非常痛苦,因为它们升级的代价就是全面替换,而不是渐进升级。

科个普:LGA、PGA?从接口看看CPU - 第19张

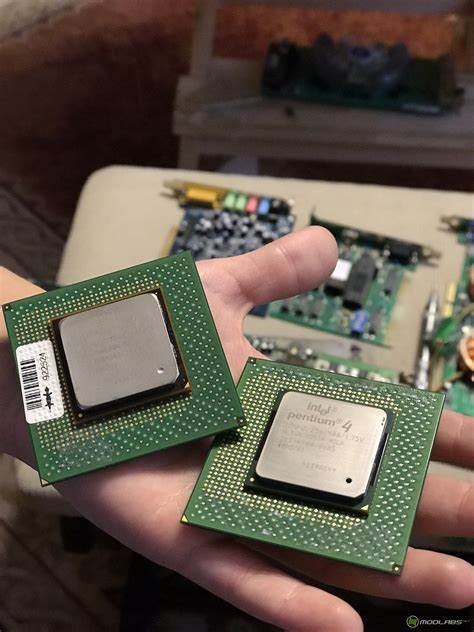

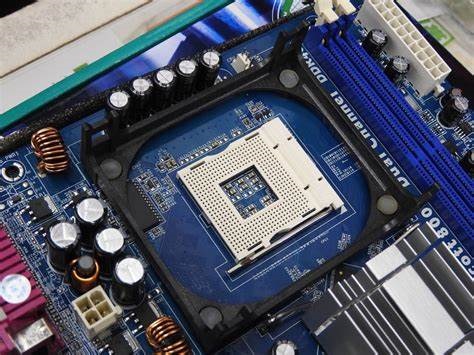

Socket 478为替代Socket 423而生,初期也不是很顺利,最早的Socket 478接口主板因为设计问题不能支持533MHz前端总线,直至中期才开始完善并且最终支持到800MHz前端总线。而且,Socket 478接口时期也是Intel历史上非常黑暗的一段日子,这个接口下的Pentium 4处理器极为差劲,超高流水线、超高频率的Pentium 4处理器性能实际上非常孱弱,尤其是Prescott核心的Pentium 4处理器,性能低功耗高,发热也十分恐怖。到了2004年,LGA 775取代了Socket 478,Intel才迎来了曙光。

科个普:LGA、PGA?从接口看看CPU - 第20张

Socket 754—Socket 939

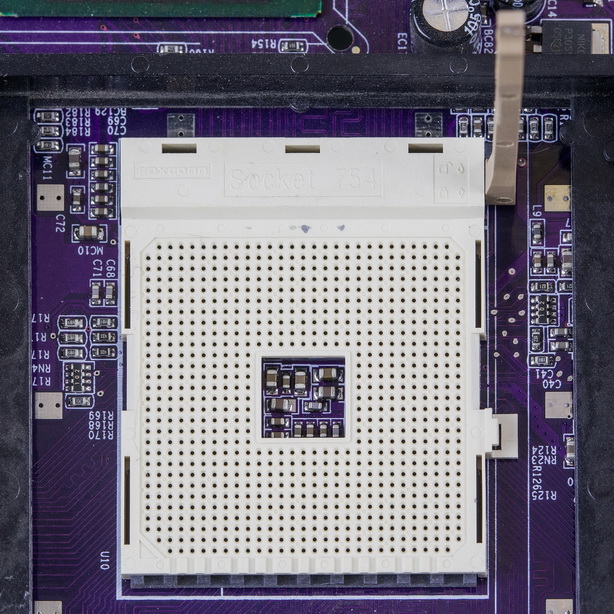

2003年9月,AMD发布了Socket 754接口平台,用以支持Athlon 64和Sempron处理器使用,这也是首个支持64位处理器的接口平台。与后期发布的Socket 939接口平台对比,它实际是一个“不完全体”,具体表现在它支持单通道内存,HyperTransport总线带宽只有9.6GB/s,这也限制了这个平台的性能发挥,因此Socket 754接口的寿命并不长。

科个普:LGA、PGA?从接口看看CPU - 第21张

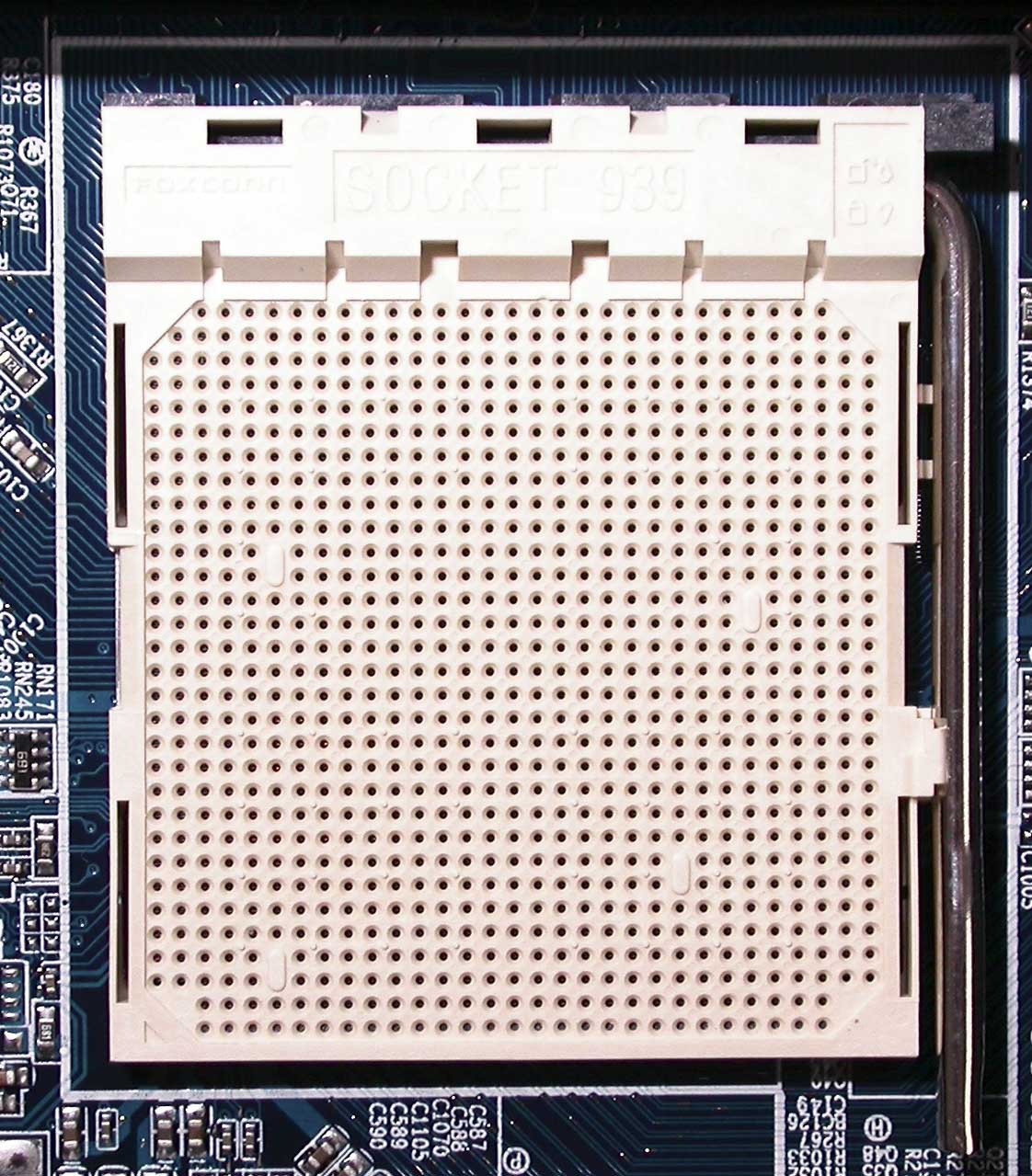

2004年6月,也就是Socket 754推出后不到一年的时间,AMD发布了Socket 939接口平台,它可以支持Socket 754所不能提供的双通道内存规格,并且HyperTransport总线的带宽也更大。不过你以为Socket 939很长寿吗?答案是否定的,仅仅过了不到两年时间,也就是2005年的5月,Socket 939就迅速被AM2接口取代了。

科个普:LGA、PGA?从接口看看CPU - 第22张

新世代LGA VS PGA 性能之争

截至目前,除了Slot 1和Slot A接口外,无一例外处理器都是使用PGA方式设计的,而在2004年,Intel推出了更为先进的LGA即LGA 775平台,就此一场PGA VS LGA的争夺战正式打响——如果以AMD的AM5作为截止符,这场“争夺持续了18年之久。

LGA 775

LGA 775于2004年7月发布,最初取名为Socket T,这是首个使用LGA方式的接口平台。不过这个时期,Intel的处理器性能依旧“拉胯”,Pentium 4、Pentium D、部分Prescott核心的Celeron(Celeron D)性能难以让消费者满意,直到划时代的Core 2 Duo处理器诞生,才让Intel重回性能之巅。

科个普:LGA、PGA?从接口看看CPU - 第23张

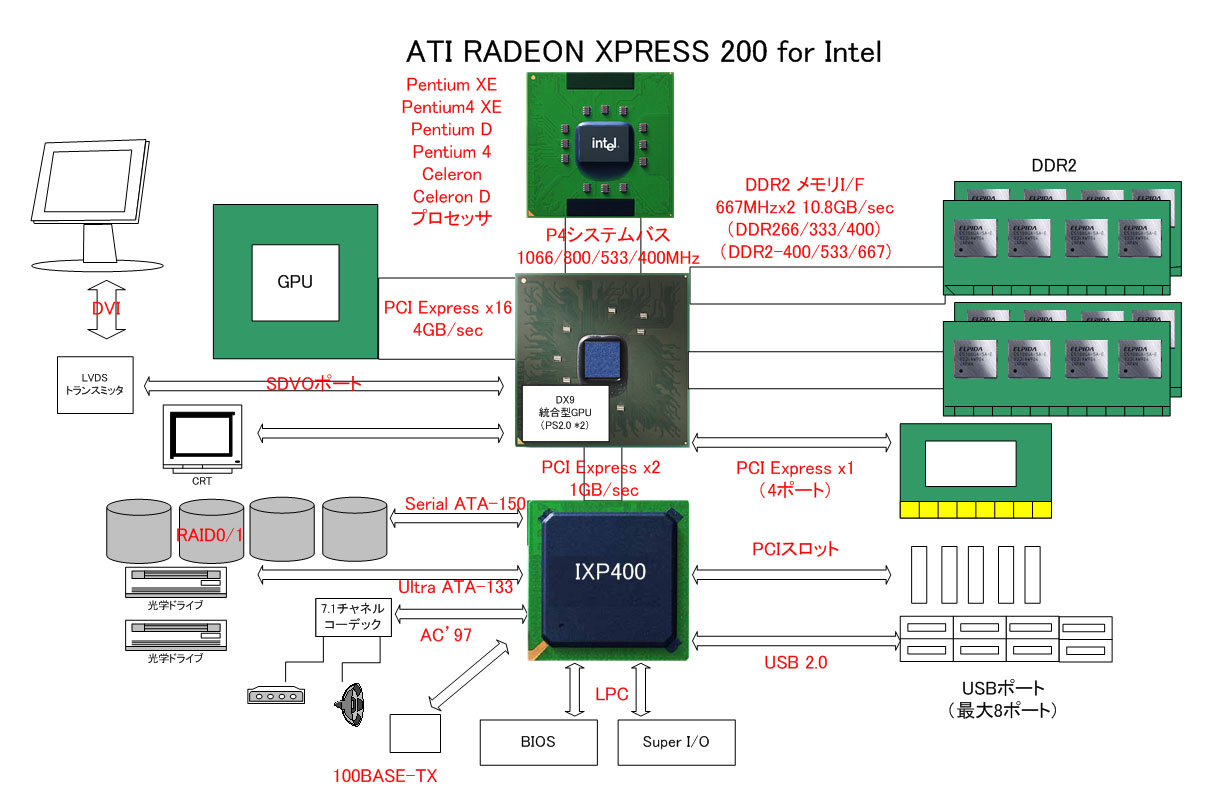

有趣的是,LGA 775接口平台也是最后一个拥有第三方芯片组的产物,这个时期除了Intel自己的芯片组产品外,NVIDIA还推出了支持LGA 775接口平台的nForce系列芯片组产品,SIS也拥有 SIS649/656/656FX/661FX/662/670/671FX多款产品,VIA也有VIA PM800/PT800Pro/PT894/PT894 Pro多款。最有趣的是,刚刚被AMD收购的ATI也推出了支持Intel处理器的Radeon Xpress 200 IE、RD600芯片组产品。在此之后Intel也好、AMD也罢,再也没有第三方芯片组产品了,这两家厂商形成了事实上的平台垄断。

科个普:LGA、PGA?从接口看看CPU - 第24张

LGA 1156—LGA 1151

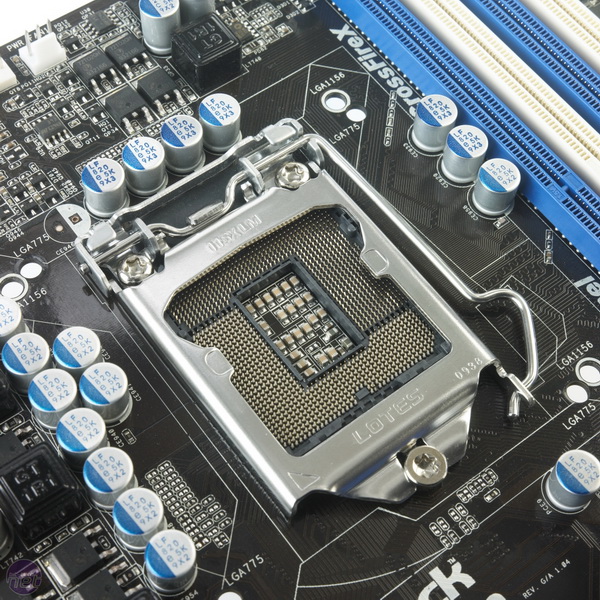

LGA 775接口平台的Core 2 Duo一经发布便让Intel重回巅峰,自然Intel希望凭借这个优势稳固自己的优势地位,LGA 1366和LGA 1156就此诞生。LGA 1366接口平台产品性能极为强悍,但是多用在服务器、工作站上,对普通用户而言LGA 1156更为合适,在LGA 1156接口平台上,第一次取消了南北桥设计,也就是将北桥功能集成于处理器之中,南桥则演变为PCH芯片,也就是单芯片构架,这种模式沿用至今。之后的LGA 1155更是达到了一个新高度,著名的Sandy Bridge构架处理器至今还有一些老用户在使用,可见其性能之强悍。

科个普:LGA、PGA?从接口看看CPU - 第25张

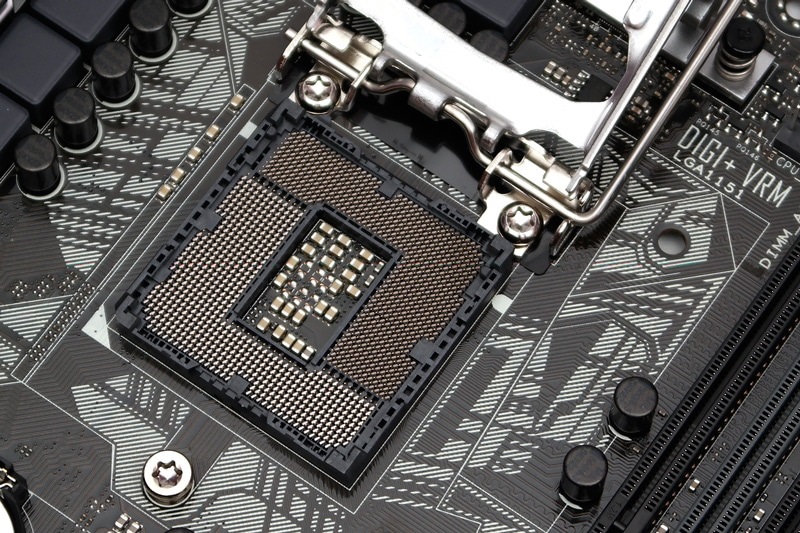

到了2013年,短命的LGA 1150诞生了,尤其对比后来者LGA 1151接口平台,它的寿命不过只有两年,很快就被取代了。LGA 1151接口品台于2015年推出,从Skylake到Coffee Lake,LGA 1151接口平台历经了Intel四代处理器,甚至最早的100系列芯片组可以通过“破解、修改”从第六代处理器一直支持到第九代处理器,历经5年之久。

科个普:LGA、PGA?从接口看看CPU - 第26张

Socket AM2—Socket AM3+

在Intel LGA接口平台高歌猛进之时,AMD却陷入了麻烦,2006年AMD推出了Socket AM2接口平台,针脚数量为940个(单就数量而言只比Socket 939多了一针),与之匹配的Phenom构架系列处理器性能对比Intel同时代产品总是差强人意,也是这个时期,Intel的处理器因为领先优势代际间性能差距并不大——因为这已经足够压制AMD平台产品了。

为了保持竞争力,AMD的Socket AM2至Socket AM3保持了良好的兼容性,因此设计也颇为奇特。比如到了AM3接口平台的时候,其主板的接口拥有941个针脚,但是处理器则是938个针脚,这样独特而怪异的设计应该是历史上唯二的存在。在AM2和AM3接口平台之间,还有一个过渡性的AM2+,用以平滑过渡,但是它的存在时间极为短暂,只不过是以AM2接口平台为基础,增加了对HyperTransport 3.0总线的支持,但是又不能使用DDR3,很快就被淘汰了。

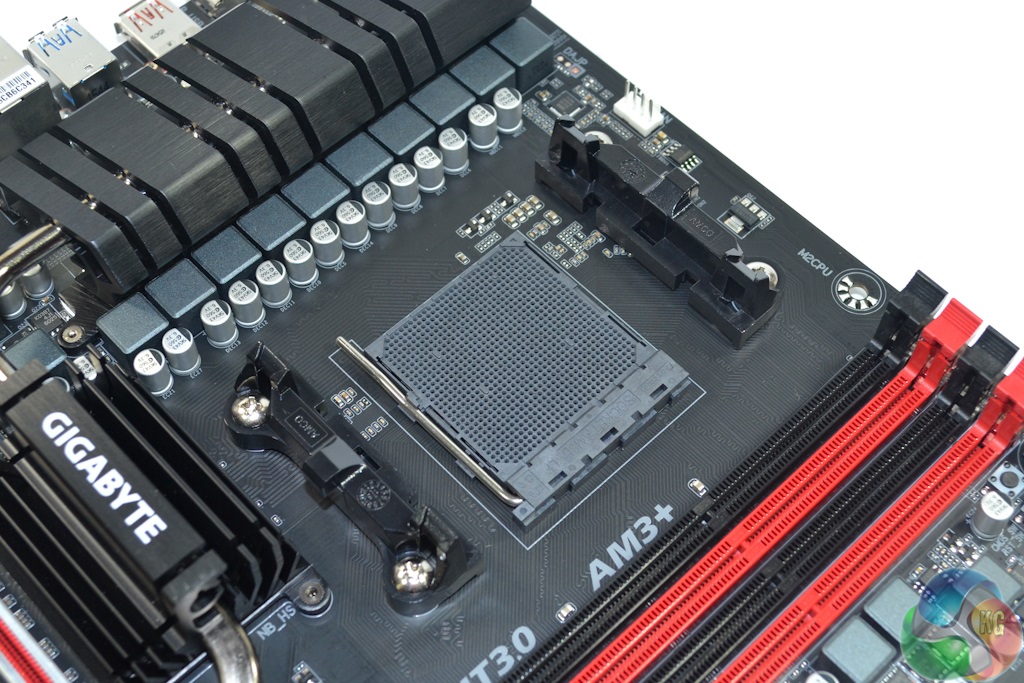

到了AM3+时,主板底座针脚数为942个,处理器针脚数为938个,以此来保持对AM3接口处理器的兼容。它提供了AM3接口平台没有的HyperTransport 3.1总线,并且DDR3内存规格和供电效率上改进明显。不过,这个时候的AMD处理器依旧难与Intel同时代产品竞争,可以说,这一段时期也是AMD历史上最为艰难的时刻。

科个普:LGA、PGA?从接口看看CPU - 第27张

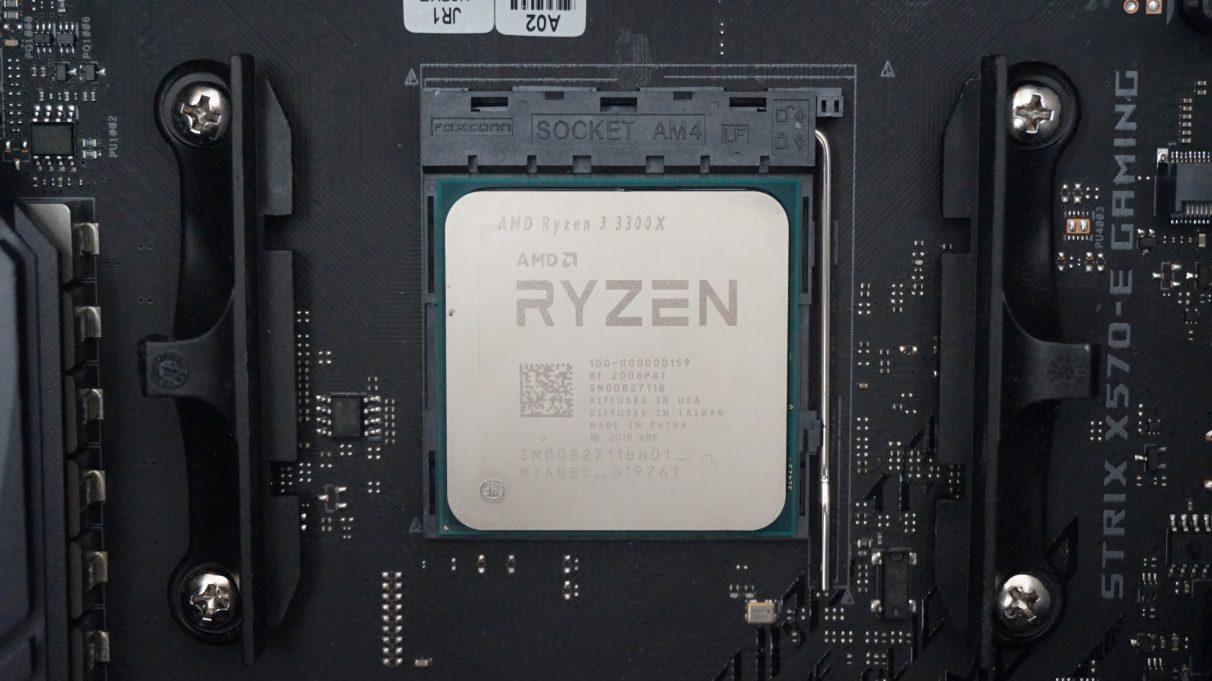

Socket AM 4

什么是扬眉吐气?Socket AM 4接口平台完美的诠释了这一点。早期的Socket AM 4平台几乎就是APU的天下,代号为Bristol Ridge的APU产品集成了诸多功能,用以吸引用户使用。2016年发布的Socket AM 4拥有1331个针脚,这让它的拓展性大为增加。到了2017年,隐忍了许久的AMD终于爆发了——Ryzen在此时横空出世,它让AMD再也次拥有了和Intel一较高下的本钱。时至今日,Socket AM 4横跨了四代产品,从Zen直至Zen3微构架的Ryzen处理器将Intel的同时代产品比了下去,同时,其保持了极佳的兼容性,即便是老款的Socket AM 4接口平台芯片组主板,也能对新处理器提供良好的兼容性支持。可以说,Socket AM 4接口平台功不可没。

科个普:LGA、PGA?从接口看看CPU - 第28张

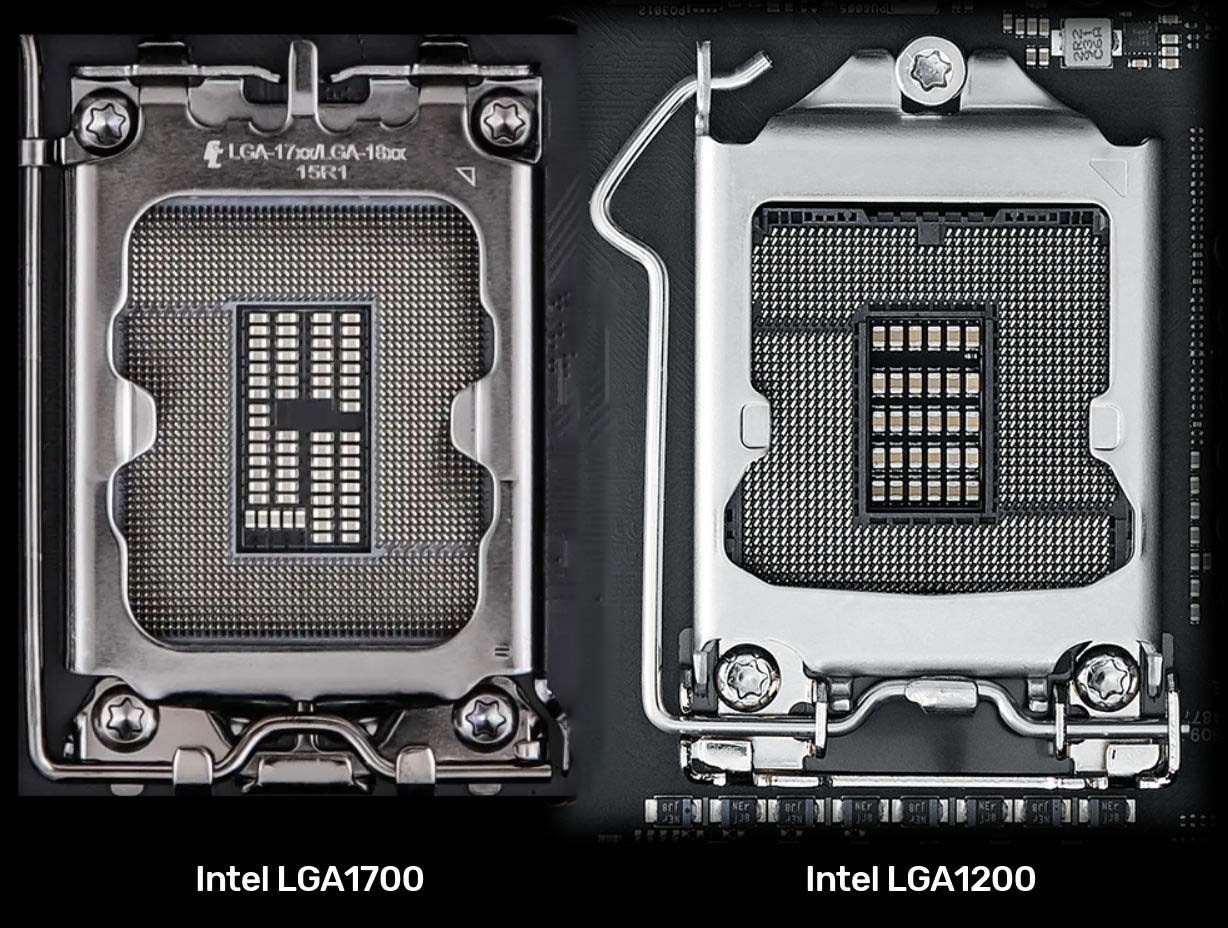

LGA 1200—LGA 1700

LGA 1200接口平台的推出,无疑现在看是一个过渡性产品,而且其配套处理器的性能并不令人满意。2020年5月发布,2021年就被LGA 1700取代了。上不能替LGA 1151,下无法与LGA 1700平滑过渡,LGA 1200接口平台虽然支持10代和11代酷睿处理器,但只是昙花一现的存在而已。

LGA 1700接口平台无疑是Intel的一个翻身仗——大小核心设计、支持DDR5内存规格的12代酷睿处理器终于迎头赶上,性能提升巨大,但也正因如此,其对电压、信号等设计更加复杂,更多的针脚来定义相关规格势在必行。这也是为什么LGA 1700的触点数量一下提升了500个的根本原因。

科个普:LGA、PGA?从接口看看CPU - 第29张

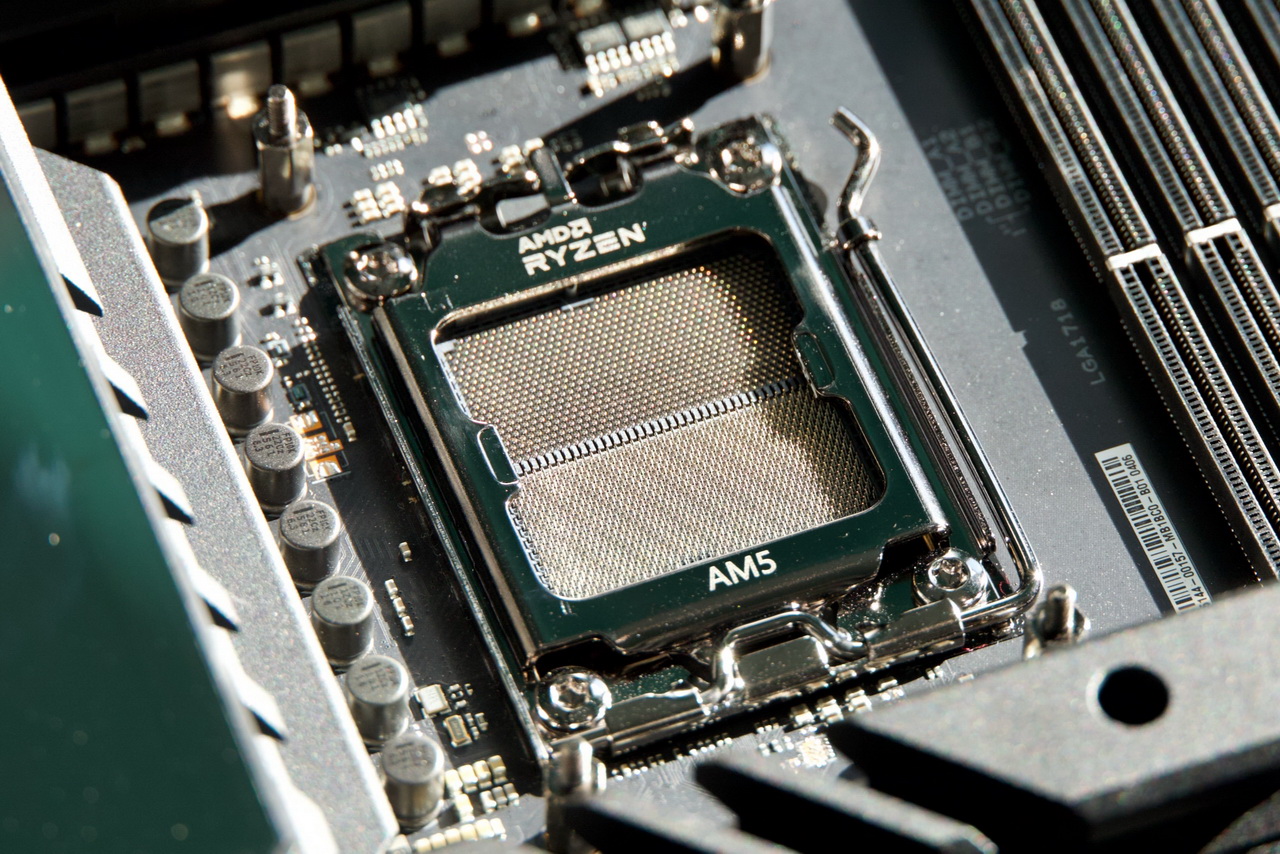

LGA AM5

Intel和AMD总是呈现螺旋式的技术竞争,不过在接口方面,AMD最终也从PGA转换到LGA了。

科个普:LGA、PGA?从接口看看CPU - 第30张

可以说,Socket AM4已经是PGA方式的天花板了,处理器拥有高达1331个针脚,实难再扩大面积增加针脚数量。要知道新一代Ryzen 7000系列的处理器拥有高达1718个触点,继续使用PGA模式无疑是非常困难的(除非继续增大处理器面积),无论对安装还是后期维修来说,都已经很难实现,因此必须专用AM5接口平台。之所以需要这么多的触点,是因为在Ryzen 7000系列处理器不仅要提供对DDR5的支持,同时还需要对PCI-E 5.0提供支撑,那么多的信号定义、供电定义,无论如何也是AM4接口平台那1331个针脚无法支撑的,这也是为什么AMD最终也转向了LGA的根本原因。

从技术角度,LGA确实要比PGA更好,因为在有限的面积内它可以容纳更多的触点,PGA的针脚间距不可能一直缩小。而且在维修上,更换处理器底座的技术难度远远低于修复处理器针脚的难度。

科个普:LGA、PGA?从接口看看CPU - 第31张

如果不考虑更换升级的可能性,BGA才是最终的“王道”,例如APPLE的处理器产品,目前无一例外都采用BGA方式,这样可以充分保证足够的电气特性,同时也兼具稳定性,故障几率相比也是最低的。但是对于大多数人而言(包括我在内),可更换、升级处理器是一个必须的选项。显然,在可见的未来相当长一段时间内,LGA将是唯一的选择。
